'SMART' Pallet Mesh Cages Series

'SMART' Pallet Mesh Cages Series

SPM3

Product Description

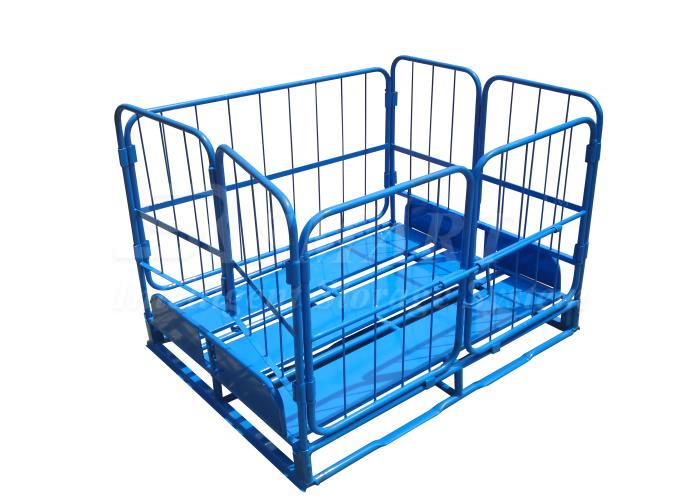

Our Pallet Mesh Cages can be folded for optimum space saving application. The cages can be easily moved by lift pallet trucks for easy goods access and relocation. Our Pallet Mesh Cages are designed in 4 sizes to suit large hypermarkets, warehouse and industrial component factories.

  • Foldable: Space saver for shipping when cages emptied, or keeping when needless.
  • Stackable: Up to 4 Layers height.
  • Durable, Tough And Stainless
  • Ideal for components, accessories, items and parts to separating and categorizing, commonly for assembly industries, like automotive, semi-conductor and plastic industries.

SPM3
Height 640mm
Width 600mm
Length 800mm
Loading Capacity 800 Kgs
Stackable Layers 4
Pitch 50mm
Wire Diameter 5.8mm
Leg Height 100mm
Volume Mᶾ 0.22

SPM5
Height 840mm
Width 800mm
Length 1000mm
Loading Capacity 1200 Kgs
Stackable Layers 4
Pitch 50mm
Wire Diameter 5.8mm
Leg Height 100mm
Volume Mᶾ 0.52

SPM7
Height 890mm
Width 1000mm
Length 1200mm
Loading Capacity 1500 Kgs
Stackable Layers 4
Pitch 50mm
Wire Diameter 5.8mm
Leg Height 100mm
Volume Mᶾ 0.82

SPM9
Height 1000mm
Width 1200mm
Length 1400mm
Loading Capacity 1800 Kgs
Stackable Layers 4
Pitch 50mm
Wire Diameter 5.8mm
Leg Height 100mm
Volume Mᶾ 1.35
